Products

The best RUBBER SHEETING BATTERY with 5set Roller System / 4 set Roller System.
The LAVANYA ENGINEERING COMPANY has scientifically designed the sheeting Battery, which is reliable, robust, portable and compact in size.

REPUTATION
The LAVANYA ENGINEERING COMPANY has done careful selection of materials for manufacturing the system and its testing at all stages of manufacturing. We assure you a satisfactory performance and dependable service over a long period of time.

5set Roller system


MAINTENCE

Greasing of ball bearing should be done once in a month with grease gun.
It requires about 1kg grease per month.
Chain lubrication is to be done with gear oil, once in a week and it requires about 250ml. approximately, per month.

GUARANTEE
The sheeting battery is Guaranteed against defect inĀ  material and workmanship under normal use and service for a period of 12 months from the date of purchase.

OPERATION MANUAL

  1. Pipeline point of water should be connected with the machine for spraying water over the sheeting process.
  2. Drainage facility should be provided for draining the waste water.
  3. Switch on the motor mounted on the machine.
  4. The feed the latex coagulum to the front side of the machine by holding both side of the coagulum with hands giving a curved shape in front side.
  5. After passing through smooth and grooved roller, rubbed sheets can be received at the other side of the machine. The wash the sheet in clean water and hang it for drip dry.
  6. Clean the machine with sufficient water to remove the dirt and acid particles and allow to dry.
  7. Input and output ratio is provided along with the required inclination for easy movements of wet coagulum.

SIPPING DETAILS OF MODELS

LM 4
Net Weight 1000 kg.
Crate size 610mm x 127mm
Grove size 2mm width x 3mm depth

LEM 5

Net Weight 1500 kg.
Crate size 610mm x 127mm
Grove size 2mm width x 3mm depth

Output capacity
600/ 1000 SHEETS PER HOUR.


RUBBER ROLLER MACHINE

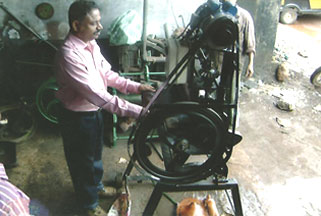

SHEET WASHING MACHINE

SEMI AUTOMATIC MACHINE

SHEET WASHING MACHINE
